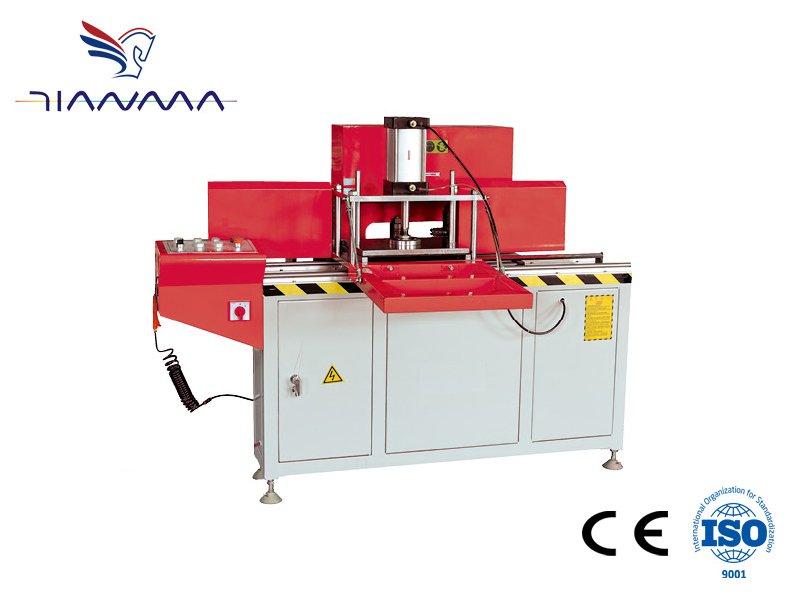

LDX-200B　Automatic End Milling Machine

Used in processing the side surface of profiles for aluminum windows & doors.
Relied on large worktable and long feed distance, G~10 pieces of profiles can be processed at the same time.
Adjustable multiple cutters need not be replaced when the profiles changed, which can save the preparation period and cost of tools.
Multiple cutters can work on different profiles individually as well as simultaneously.
Larger diameter of cutter makes the processing extent expanded. Thickened pressing board can avoid the deformation of the profiles.
The feeding is completed through the transformation of gas and liquid, which makes the work more stable.

Power supply: 380V/50Hz
Total power: 2X2.2KW
Air pressure: 0.5-0.8MPa
Rotating speed: 2800r/min
Milling spindle diameter: Φ32mm
Milling cutter diameter: Φ200mm
Overall dimensions: 2400X1000X1600
